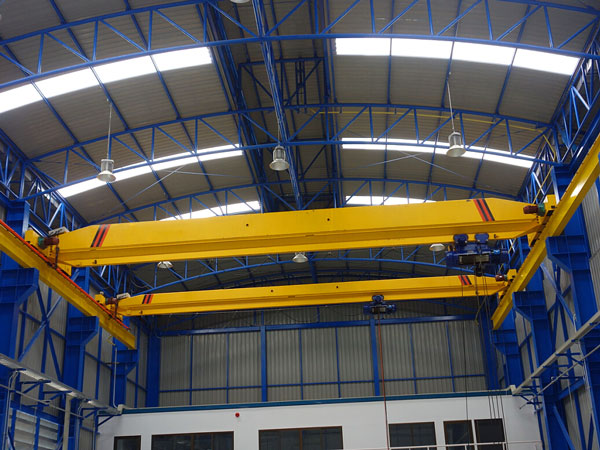

  • 5-ton-Single-Beam-Overhead-Bridge-Crane
  • 10-ton-Single-Beam-Bridge-Crane
  • Single-Beam-Crane
  • 1-ton-Single-Beam-Overhead-Bridge-Crane
  • 5-ton-Single-Beam-Overhead-Bridge-Crane
  • 10-ton-Single-Beam-Bridge-Crane
  • Single-Beam-Crane
  • 1-ton-Single-Beam-Overhead-Bridge-Crane

LD Single Girder Overhead Crane

  • Capacity: 1~32t (Standard, Non-standard Customized)
  • Span: 7.5~31.5m (Customized)
  • Lifting height: 6m, 9m, 12m, 18m, 24m, 30m(Customized)
  • Lifting speed: 0.35~8m/min(defined by Capacity)
  • Traveling speed: 20/30 m/min
  • Duty Group: ISO A3, A4
  • Protection degree: Ip54/Ip54



LD single girder overhead crane is a light duty lifting equipment, Its used along with Electric Hoists. And the LD crane consists of one girder beam supported on each side by an end carriage. The lifting system (electric wire rope hoist or electric chain hoist) is underhung—meaning they run on the bottom flange of the single girder.

LD single girder overhead crane

LD Series Single Girder Overhead Crane

  • 1. One-time Forming box girder.
  • 2. Whole length CNC cutting for complete web plate.
  • 3. High quality automatic welding and NDT inspection.
  • 4. Shot-blasting Sa2.5 for complete girder after welding.
  • 5. High tension bolts mounting between girder and legs.
  • 6. All hoist and crane movements are independent and can be run simultaneously.

 LD single beam overhead crane for sale overhead crane for sale  LD overhead crane for sale  LD single beam crane for sale

  • 1Widely used at different applications.
  • 2Simple hoist and trolley design making it easy to maintenance and operate.
  • 3Typically cost saving compared with other lifting solutions.

LD Single Girder Overhead Crane is mainly used in Manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation, power station, food industry, paper making, building material, warehouses and other material handling application.

desgin Text Installation services

Technical Data

LD Single Girder Overhead Crane Drawing

Capacity Ton 1 2 3 5 10 16 20
Span Meter 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5
Lifting Height Meter 6~30 6~30 6~30 6~30 6~30 6~30 6~30
Lifting Speed M/min 0.8/8 0.8/8 0.8/8 0.8/8 0.7/7 0.35/3.5 0.33/3.3
Trolley Speed M/min 20/30 20/30 20/30 20/30 20/30 20/30 20/30
Crane Speed M/min 20/30 20/30 20/30 20/30 20/30 20/30 20/30
Working Duty A4 A4 A4 A4 A4 A4 A4
Rail Type P24 P24 P24 P24 P24/P38 P24/P38 P24/P38


Please note: Above specification just for your reference, our crane can be customized design based on your requirements.

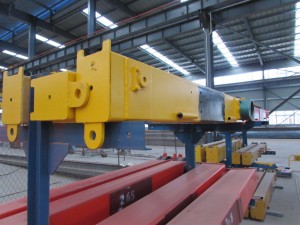

end beammain beamLD single girder overhead crane electric wire rope hoistLD single girder overhead crane electrical box
