HD Europe Type Single Girder Overhead Crane

  • Capacity: 5~20 tons (Standard, Non-standard Customized)
  • Lift Height: 6~30m (Customized)
  • Span: 7.5~50m (Customized)
  • Speed: Customized speed based on requirement
  • Duty Group: ISO A5, FEM 2M
  • Protection Degree: Ip54/Ip54
  • Working Temperature: -20~+40℃(max 60℃)
  • TAG:Overhead Crane

0086-371-58528680

Description

HD type single girder Europe overhead crane is Flagcrane new designed crane for the low workshop and high lifting height demands. and It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, etc. It’s could save your factory space and investment effectively. The technology is advanced and design is based on international standard: DIN (Germany), FEM (Europe), and ISO (International). Its particular and special travelling structure is your best choice.

HD type single girder Europe overhead crane was widely used to handle materials in many industries’ workshop and warehouse.The lifting hoist adopts M5 working class with double lifting speed. Cross and long traveling are variable travelling speed. Electric parts adopt IP 54 high protection class.Europe overhead crane Single Girder Europe Overhead Crane With ND Type Hoist

Features
  • 1DIN/FEM standard deflection.
  • 2Whole length CNC cutting for complete web plate.
  • 3High quality automatic welding and NDT inspection.
  • 4Shot-blasting Sa2.5 for complete girder after welding.
  • 5High tension bolts mounting between girder and legs.
  • 6Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55.
  • 7High protection class IP55, F class, 40% ED.
  • 8Excellent driving properties, stepless control, smoothly moving.
  • 9All hoist and crane movements are independent and can be run simultaneously.

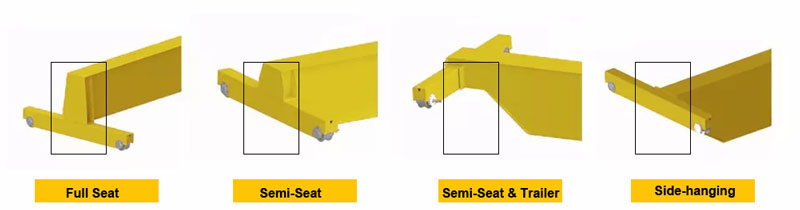

Flagcrane european overhead crane seat type

Advantages
  • 1It has more space utilization and less power consume.
  • 2Durable performance and reliable in operation.
  • 3Construction of structural welded elements, done with automated and robotic systems.

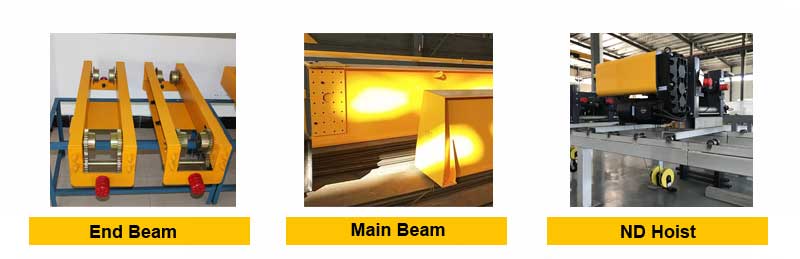

Flagcrane HD European Bridge Crane Parts Flagcrane HD European Bridge Crane Parts

Flagcrane HD european overhead crane parts Flagcrane HD European Overhead Crane Parts

Applications

HD type single girder Europe overhead crane is widely used in manufacturing workshop, metallurgy, petroleum,petrochemicals,ports,railway,civil aviation,power station,food industry, paper making,building material, warehouses and other material handling application.

desgin Text Installation services

Technical Data

HD-Europe-Type-Single-Girder-Overhead-Crane-Drawing

Capacity Ton 2 3 5 10 16 20
Span Meter 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5 7.5~28.5
Lifting Height Meter 6~30 6~30 6~30 6~30 6~30 6~30
Lifting Speed M/min 5/0.8 5/0.8 5/0.8 5/0.8 5/0.8 5/0.8
Trolley Speed M/min 5~20(Inverter Control) 5~20(Inverter Control) 5~20(Inverter Control) 5~20(Inverter Control) 5~20(Inverter Control) 5~20(Inverter Control)
Crane Speed M/min 2~20(Inverter Control) 2~20(Inverter Control) 2~20(Inverter Control) 2~20(Inverter Control) 2~20(Inverter Control) 2~20(Inverter Control)
Working Duty A5 A5 A5 A5 A5 A5
Rail Type P24 P24 P24 P24/P38 P24/P38 P24/P38

Please note: Above specification just for your reference,our crane can be customized design based on your requirements.
