CD/MD Wire Rope Electric Hoist

  • Capacity: 0.5~32 tons (Standard, Non-standard Customized)
  • Lift Height: 6~100m (Customized)
  • Lifting Speed: 8/0.8 m/min
  • Traveling Speed: 20/30 m/min
  • Duty Group: ISO M3, M4
  • Protection Degree: Ip54/Ip54
  • Working Temperature: -20~+40℃
  • TAG: Electric Hoist

0086-371-58528680

Description

CD/MD wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working on I beam, also it can be together with the overhead crane, gantry crane and jib crane.

CD/MD wire rope electric hoists are widely used at different applications, Sometimes, And it can also be used as lifting mechanism.

CD wire rope electric hoist (1)  CD wire rope electric hoist

Features

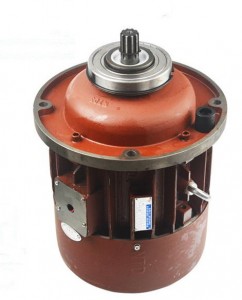

  • Electric hoist Motor
    1.Asynchronous Conical rotor motor with brake inside,
    2. Safe usage and easy maintenance,
    3. Stable starting, effective braking,
    4. B or F class insulation, IP44, IP54 protection.
  • Electric hoist Reducer
    1.Box and cover made from superior cast iron, fully covered,
    2.Gear and the axle made by alloy steel after heat treatment,
    3.Great speed ratio, silent operation,
    4.Easy to assemble and disassemble.

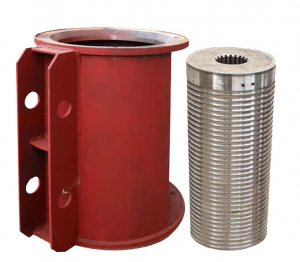

  • Hoist Rope Drum & Guide
    1.Welding rope drum,
    Coil casing made from superior cast iron, high intensity,
    2.Rope guide avoids intertwining of wire rope, extend the rope and drum’s lifetime,
    3.No disturbance between rope socket,
    4. Easily interchangeable.
  • Electric hoist Safety Protection
    1. Fire stopper,
    2. Position stopper, preventing hook clashing the top,
    3. Overload limiter, Show accurate weight value, and warning.
  • Steel Wire Rope
    1. GB/T 20118-2006(6*37+1) hoisting wire rope,
    2. Anti-tensile, good flexibility,
    3. Good resistance to impact, long lifetime.
  • Control Ways
    1. Pendant and remote control
    2. Waterproof, anti-fall.
  • Electric Hoist Hook
    1. 20 high quality carbon steel,
    2. High security, triple static load,
    3. Spring-loaded sturdy safety catch, ensuring slings not release,
    4. Safe and reliable.

CD-electric-hoist-drawing

Advantages
  • 1The working duty has been increased from M3 to M4
  • 2Hoist Energy Efficiency Gradehas reached Level 2 or even level 1.
  • 3Hoist operating inspection time has reached more than 1000hrs, which is far more than the National Standards 800hr.
  • 4Complete hoist with Environmental Painting.

CD/MD electric hoist CD/MD electric hoist CD/MD electric hoist

Applications

CD/MD wire rope electric hoist is widely used in manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation, power station, food industry, paper making, building material, warehouses and other material handling application.
desgin Text Installation services

Technical Data
Type Capacity Lifting Height Lifting Speed Traveling Speed Power Supply



Single Speed Double Speed
Ton Meter M/min M/min V-Hz-Phase
CD/MD 0.25 6~30 8 0.8/8 20 220~440v-50~60Hz-3 Phase
0.5 6~30 8 0.8/8 20/30
1 6~30 8 0.8/8 20/30
2 6~30 8 0.8/8 20/30
3 6~30 8 0.8/8 20/30
5 6~30 8 0.8/8 20/30
10 6~30 7 0.7/7 20/30
16 6~30 3.5 0.35/3.5 18

Please note: Above specification just for your reference,our hoist can be customized design based on your requirements.

wire rope electric hoist motorwire rope electric hoist drumwire rope electric hoist pendantwire rope electric hoist electrical
