BB Wall Travelling Jib Crane

  • Arm Length: up to 16 m
  • Rotating Speed: 0.5 r/min
  • Safe Working Load: up to 16 tons
  • Working Temperature: -20~+40℃
  • Travelling Speed: 20 or 30 m/min

TAG:Jib Crane

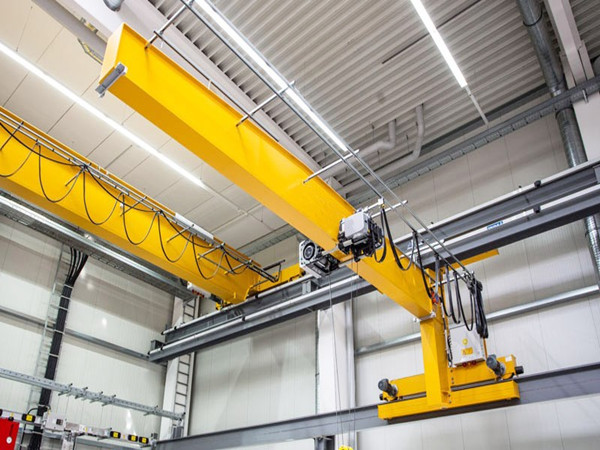

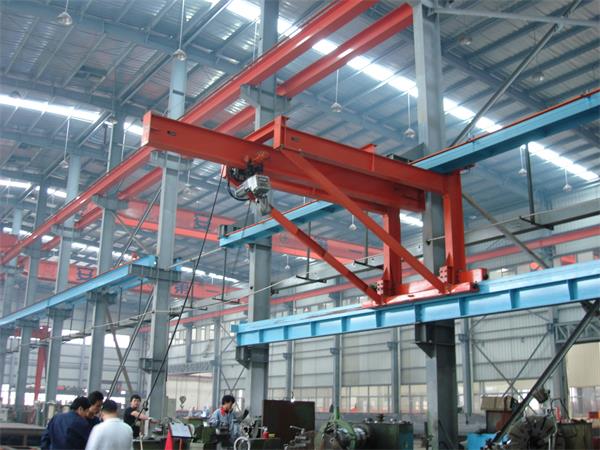

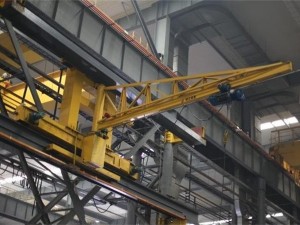

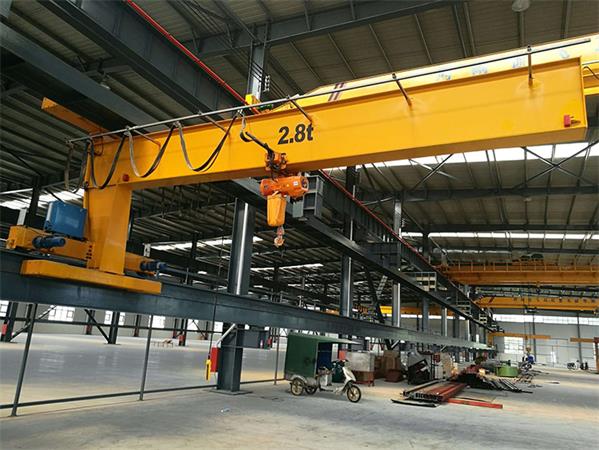

BB wall travelling jib crane provide long lateral movement of materials without taking up floor space or interfering with large overhead cranes. Wall travelling jib cranes can serve for several work stations that lined up at the same time with the capacities up to 5 tons and arm length up to 10 m. The runway length has no limitation. It can cover as much area as your need and what you required to do is to stretch the runway length by a little investment. As wall travelling jib cranes suppliers, we can help you choose the most suitable cranes according your working conditions.

On many situations, it undoubted will be the most cost-effective. Overall plant productivity can be increased by quickly handling smaller lifts. The operation is easy, accurate, swift and efficient. We can also provide custom engineered solutions that are specifically designed to meet your production needs and building specifications.

wall travelling jib crane wall travelling jib crane wall travelling jib crane wall travelling jib crane

  • 1Installation area is smaller, But Working Area is bigger
  • 2Easy to operate and maintenance
  • 3Be able to rotate 180. 270. degree with limit swtich
  • 4Compact structure, light weight and high lifting height
  • 1High efficiency
  • 2Less power consume
  • 3Specially suitable for short distance material handling

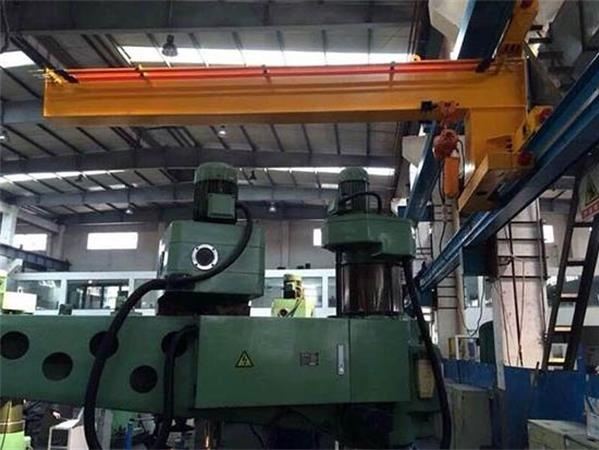

BB wall travelling jib crane is widely used in Manufacturing workshop, metallurgy, petroleum, petrochemicals,ports,railway,civil aviation,power station,food industry, paper making,building material, warehouses and other material handling application.
desgin Text Installation services

Technical Data

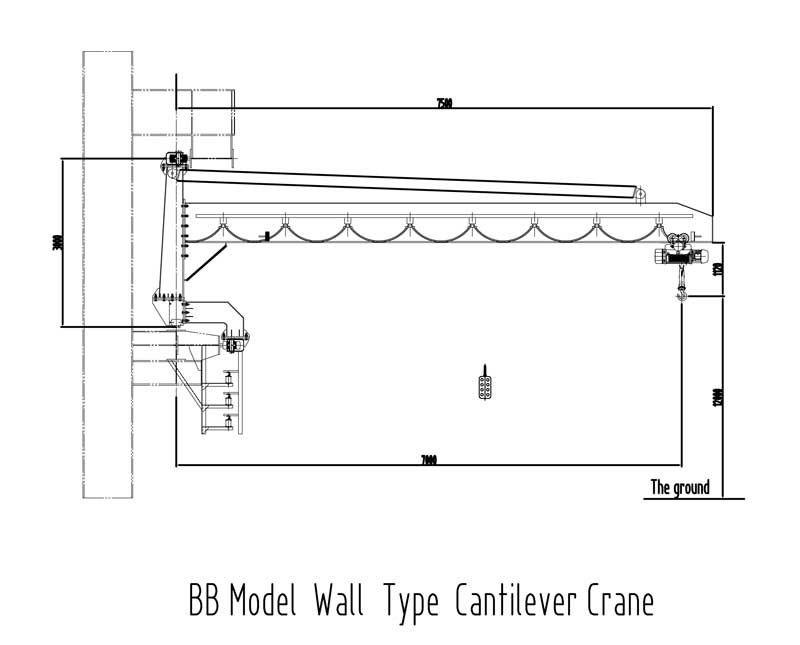

BB wall type jib crane

Capacity Ton 1 2 3 5
Span Meter 5~12 5~10 4~8 4~7
Vertical Wheel Distance Meter 2.5 2.5 3 3
Horizontal Wheel Distance Meter 2 2.5 3.3 4
Long travel wheel Distance Meter 4 4.5 5 5.5
Lifting Speed M/min 8 8 8 8
Cross travel speed M/min 20 20 20 20
Long travel speed M/min 20 20 20 20
Control Model Pendant or Remote control

Please note: Above specification just for your reference,our crane can be customized design based on your requirements.
