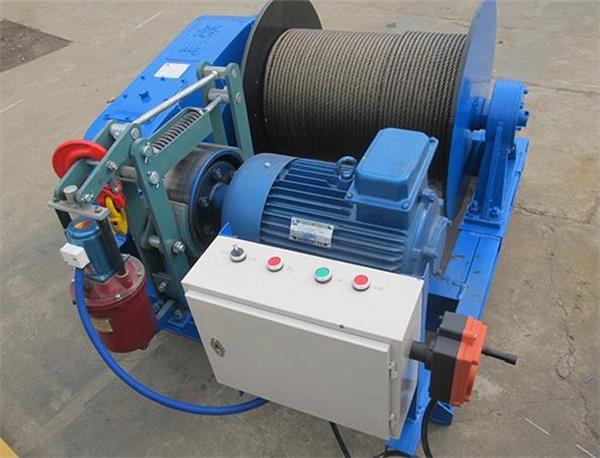

Electric Winch

  • Capacity:1~800t
  • Rope length:30~500m
  • Speed is customized based on clients requirement
  • Protection degree: Ip54/Ip54
  • Working temperature: -20~+40℃(max 60℃)

TAG: Other Type Cranes

0086-371-58528680

Description

Electric winch has a wide load range and will adapt perfectly to all your needs. They are widely used in various industries such as paper, power generation, energy, steel, petrochemical, marine and metallurgical industries.

The standard capacity of electric winch: 1t, 2t, 3.2t, 5t, 8t, 10t, 12.5t, 16t, 20t, 25t, 32t, 50t, 65t.

The Max Rope length can reach to 3500m, Min. rope length can be 20m.

The control models:Hand wheel switch or control box with push buttons or remote control.

The main motors type: Y/YZ type + electric control box or YZR type + electric resistance box.

Working speed:5~20 m/min or customized design.

Electric winch Electric winch Electric winch Electric winch Electric winchElectric winch

Features
  • 1Strong versatility,
  • 2High tractionstrength and high speed
  • 3Easy to operation and reliable performance
Advantages
  • 1Steady,Accurate and reliable transmission
  • 2Wide range of working power and speed
  • 3Very long service lifetime
Applications

Electric winch is widely used in paper making, electricity generation, energy, steel, petrochemical,marine and metallurgical industries.
desgin Text Installation services

Technical Data
Capacity Ton 10 12.5 16 20 25 32 50
Speed M/min 8 8 10 10 9 9 9
Rope Capacity Meter 250 300 500 600 800 700 700
Rope Diameter mm 30 32 37 42 48 50 60
Motor Power Kw 22 30 37 45 55 75 90
Total dimensions mm 2100*1350*980 2790*2100*1500 3600*2100*1700 3800*2200*1800 4180*2700*1980 3980*2740*2100 4850*2980*2300
Dead Weight Kg 2800 4800 8700 9600 14500 16000 21000



Please note: Above specification just for your reference,our winch can be customized design based on your requirements.
