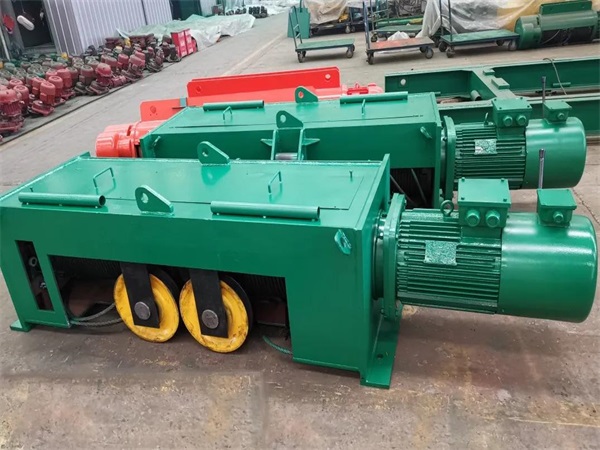

JY wire rope insulation electric hoist is a special wire rope electric hoist used in the smelting workshop of electrolytic aluminum, magnesium, lead, zinc, copper and other non-ferrous metals. Insulation system is installed in trolley transmission and lifting mechanism such as hook block to make sure the resistance value of each insulation point is not less than 1.0MΩ at room temperature.
The materials for insulation are with good insulation performance, high strength and good wear resistance. The insulation hoist consists of lifting mechanism, traveling mechanism, insulation system, electric control system, etc. The product quality conforms to ISO standards.
1. The insulating materials are all made of epoxy phenolic laminated glass cloth board and thermosetting resin industrial hard circular layer bar, and the insulation performance is safe and reliable
2. The novel insulating anti-magnetic hook device has more advantages
a. The hook shell and hook pulley are made of thickened high-strength insulating material, which has stronger wear resistance and insulation
b. The hook head of the hook is forged with 304 stainless steel material, and the anti-magnetic performance is more reliable
c. Equipped with locking device, more secure and reliable
3. The hook head of the hook is designed according to the performance requirements of 304 stainless steel, with higher safety and reliability
4. There are many varieties and specifications, and the range of lifting and running speed is wide.
5. Continue the features of CD/MD electric hoist which are easy to operate and cost-effective
6. CD/MD series derivative products, strong universality of parts and convenient after-sales service

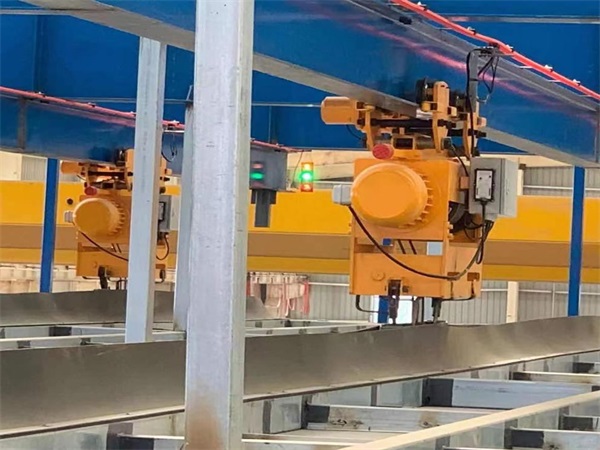

JY wire rope insulation electric hoist is widely used for smelting workshop of electrolytic aluminum, magnesium, lead, zinc, copper and other non-ferrous metals. The materials for insulation are with good insulation performance, high strength and good wear resistance.
|Lifting Height (m)||6~45||9~30||9~24||8~20|
|Lifting Speed (m/min)||8||7||3.5||3.5||3|
|Travelling Speed (m/min)||20|
Please note: Above specification just for your reference,our hoist can be customized design based on your requirements.
